Features

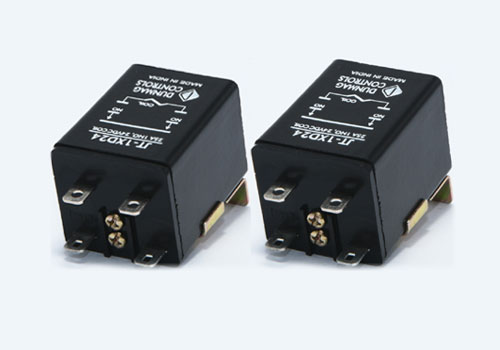

- General Purpose Power Relay
- 10A, 20A and 25A
- High Dielectric Strength - 2500VAC
- No Contact Chattering For Momentary Voltage Drop
- Available in Dust Protected Covers
- Metal Clamp Provided - Horizontal or Vertical
- Mechanical Endurance - 1 X 106 Operations
- Terminal - Screw or Screw With Lug
Send Enquiry
- One Changeover Contacts - Can Be Used As a Combination of Make and Break Actions
- Contact Material : Silver Alloy
- Contact Resistance : ≤100mΩ (1A 6VDC)
BROCHURE
